SATLINK Satfinder cu imagine live ST-5150 DVB-S2/T2/C COMBO - aparat profesional de reglat orice antenă cu tuner inclus QPSK, 8PSK, 16APSK

SATLINK ST-5150 DVB-S2/T2/C COMBO HD Satellite TV Finder Meter H.265 MPEG-2/MPEG-4

Suportă QPSK, 8PSK, 16APSK

SATLINK ST-5150 DVB-S2/T2/C COMBO HD
REGLAȚI SATELIT, CABLU, TERESTRU, CAMERE VIDEO ETC.
SATLINK ST-5150 DVB-S2/T2/C COMBO HD
REGLAȚI SATELIT, CABLU, TERESTRU, CAMERE VIDEO ETC.
ST-5150 DVB-S/S2/T/T2/C Aparat combo de măsurat

ST-5150 este un aparat DVB-S-S2/T/T2/C și MPEG-2/4 AVC,H.265(8 Bit) /HEVC combo de măsurat.

Cu dimensiunile sale compacte, greutatea redusă, interfața intuitivă pentru utilizator, ore lungi de funcționare a bateriei și setul bogat de caracteristici, contorul oferă toate funcțiile necesare pentru instalarea și verificarea serviciului digital de televiziune prin satelit, a semnalului antenei și a semnalului prin cablu către case rezidențiale sau unități cu mai multe locuințe.

Features
4.3 Inch High Definition TFT LCD Screen
Fully DVB-S/S2/T/T2/C compliant
MPEG2,MPEG4,H.264/MPEG4 AVC,H.265/HEVC hardware encoding
Digital meter for signal strength and quality
Supports Auto Scan and Manual Scan
Sound and Light Alarm for Looking Signal
Auto Calculate Angle of AZ,EL
Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
Speaker Integrated
Support both AV out and AV in
Support both HD-MI out
LNB short protect
7.4V/2600mAh Li-Ion Battery included
Software upgrade via USB port
Easy to carry

Specifications
Transmission Standards: DVB-S2/S,DVBT/T2, DVB-C/MPEG4 AVC,H.265(8 Bit)/HEVC
Satellite Input/ Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: -65 to -25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Imax 400mA
Demodulation Type: QPSK,8PSK,16APSK
Symbol Rate: 2

DVB-T/T2/C Input/Demodulation
Connector Type: Female Type
Input Frequency: 48 to 862 MHz
Signal Input Level: -79.5dBm (MAX)
ANT Supply: 5V, 12V/24V Imax 100mA
Demodulation Type: QPSK,16PAM,64QAM,256QAM

LCD Features
LCD Type: TFT Transmissive
Number of Dots: 480 x (RGB) x 272
Active area (WxH): 95.04mm x 53.86 mm

AV output interface
Connector Type: 3.5 mm jack
Video Output: CVBS
Audio Output: Stereo Audio L/R output

Audio/ Video Processing
Video decompression: MPEG-2 MP *HL, MPEG-1 Decoding,MPEG-4 ASP * L5 HD resolution,H.264 MP&HP * L4,H.265/HEVC,HW JPEG decoding
Resolving rate: PAL-25 frame * 720*576,NTSC-30 frame * 720*480
Signal compatibility: Support conversion for different video formats
Video Format: 4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
AUDIO Output Stereo, Mono, R/L

Data Service Port
Connector: USB
Data Protocol: USB2.0 interface
File Management System: NTFS,FAT32,FAT16
File Format: wma,mp3,mp4,avi,jpp,bmp,img

Power Supply
Li-lon Battery: 7.4V/2600mAh
Adapter Output: DC12V/1.2A,Input:100-240VAC 50/60Hz (Will be subject to actual configuration)
Power Consumption: Max, 10W
Physical Characerstics
Size(W x D X H): 170mm x 120mm x 40mm
Net Weight: 1Kg
Package Included:
1 x ST-5150 Digital Satellite Meter
1 x AV cable
1 x Power Adapter (US/EU/UK/AU Plug)

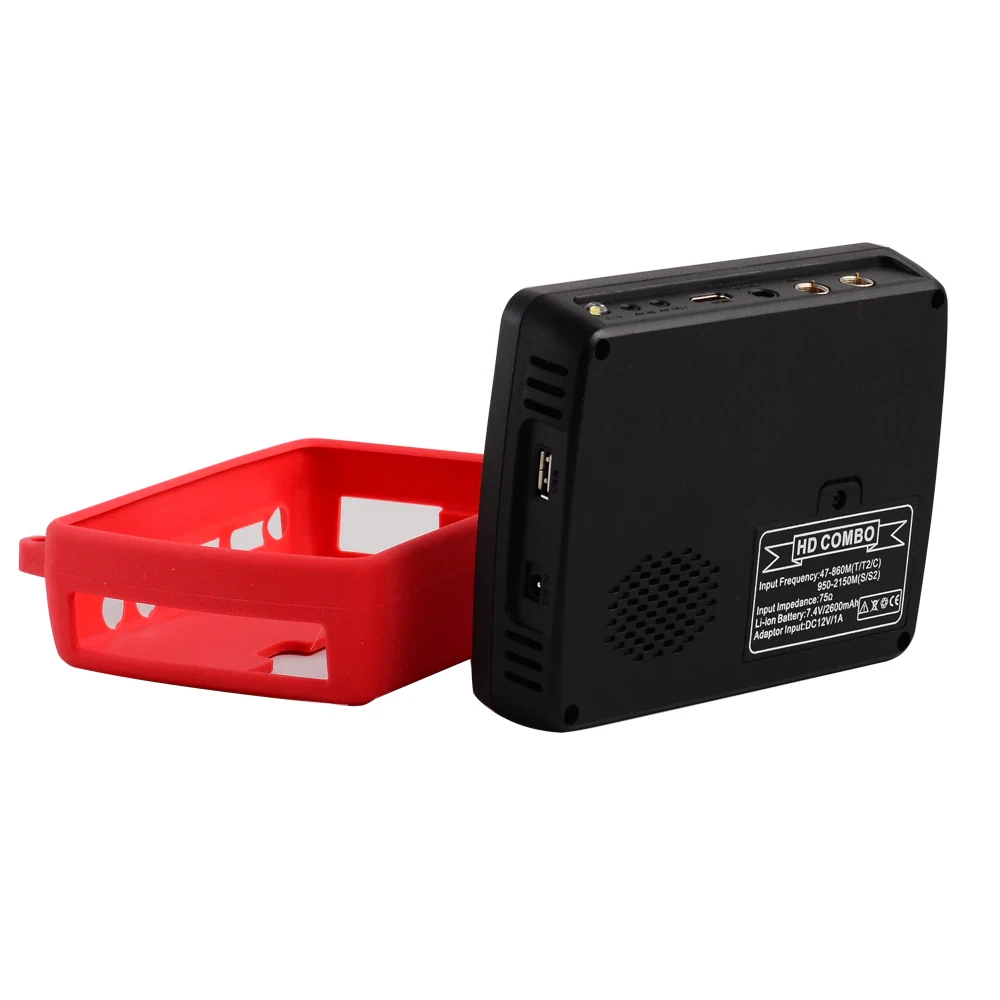

1 x Silicone case
1 x Straps
1 x User Manual (English)
