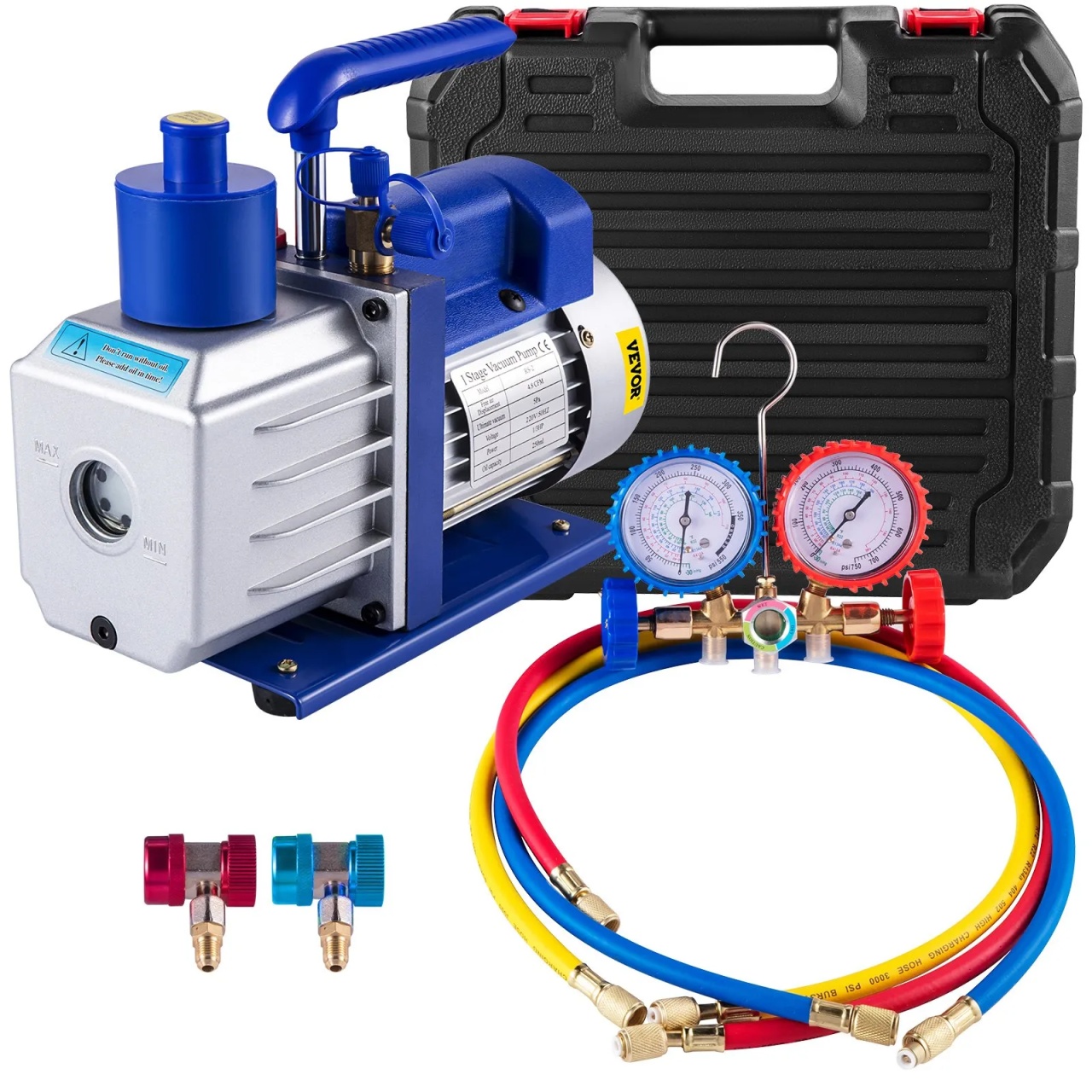

Vacuum pump + 2-way manometer set, vacuum for preparing heating systems with heat pump or air conditioning with freon
- 34%
RON 649.00
/BUC
(VAT included)
RON 990.00
/BUC
How can we help?
Delivery 12/24h (M-F) | 24 months warranty | 14 days money back
Description
The Value DNTY-1H-N vacuum pump is a Value brand product with reduced dimensions and weight. With a flow rate of 0.7 l/s and a vacuum depth of up to 150 microns, this vacuum pump is recommended for use in household refrigerators, household air conditioners, car air conditioners, and small commercial refrigerated display cases.
Value DNTY-1H-N vacuum pump specifications:
1. 1-stage vacuum pump
2. 220 V power supply
3. vacuum pump flow rate at 220 V / 50 Hz: 42 l/min or 1.5 CFM
4. total pressure: 150 microns Hg column
5. power: 1/5 HP
6. 1/4" inch SAE type threaded connection
7. ambient operating temperature: 5 - 40 degrees Celsius
8. small dimensions: 255x105x205 mm;
9. small weight: 4 kg
10. power 150W
Value DNTY-1H-N vacuum pump specifications:
1. 1-stage vacuum pump
2. 220 V power supply
3. vacuum pump flow rate at 220 V / 50 Hz: 42 l/min or 1.5 CFM
4. total pressure: 150 microns Hg column
5. power: 1/5 HP
6. 1/4" inch SAE type threaded connection
7. ambient operating temperature: 5 - 40 degrees Celsius
8. small dimensions: 255x105x205 mm;
9. small weight: 4 kg
10. power 150W
Using the vacuum pump:1. For safety reasons, the pump is not filled with oil. The oil is placed separately in a container. Before first use, you must put the oil in the pump. Check on the pump's glass sight glass that the oil level is halfway up and turn on the pump. From the moment the sound emitted by the vacuum pump is clear and uniform (after approximately 2 - 30 seconds), let the pump run for approximately 1 minute, then check that the oil level is in the middle of the sight glass. If it is too low, turn off the pump and top up with oil.2. The vacuum pump oil is replaced if it is contaminated with residues or changes its color to brown. To change the oil, unscrew the oil cap under the oil sight glass and let it drain, then refill as in point 1. Check the oil level before each use of the pump. text-align: left;">Complete kit for checking 2-way refrigeration installations, freon with quick couplings for heat pump or air conditioning with 2 gauges, 2 valves and 3 hoses
This 2-way pressure gauge set is used for charging and checking air conditioning or heat pump systems, by providing pressure values. It is suitable for use on all A/C vehicles, as well as commercial and domestic refrigeration A/C systems.If you want to install a heat pump, an air conditioner, you must have quality, appropriate tools to carry out the work professionally;This installation kit with gauges and quick couplings will help you to install the heat pump correctly, since freon is used for heat transfer between the inside and outside of your home.The color-coded gauges are quick, clear, and easy to read. They come with a protective case to prevent damage. You can use the included steel hook to quickly and easily hang the gauges.The gauge set has a durable construction.
Specifications
2-way
Bronze charging valve
With 3 charging hoses
Hose length: 150 cm
Burst pressure: 2500 PSI
Maximum operating pressure: 500 PSI
Includes steel hook
Refrigerant flow control sight glass
Suitable for R134a, R22, R12 and R502 refrigerants
Contains 2 quick couplers for charging freon into the system
Bronze charging valve
With 3 charging hoses
Hose length: 150 cm
Burst pressure: 2500 PSI
Maximum operating pressure: 500 PSI
Includes steel hook
Refrigerant flow control sight glass
Suitable for R134a, R22, R12 and R502 refrigerants
Contains 2 quick couplers for charging freon into the system
Details
SKU
SKUPOMPAMANOM
Brand
