Scissor lift, Maximum height 8m, Maximum load 320 kg, Voltage 24V, Power 4.5 kW

Description

Scissor lift – Specifications:

✔️ ÎMaximum working height: 8 m
✔️ Maximum load:320 kg
✔️ Platform dimensions: 2.3m (L) × 0.8 m (l)
✔️ Platform extension: 0.9 m (for additional access) - Total=3.2M

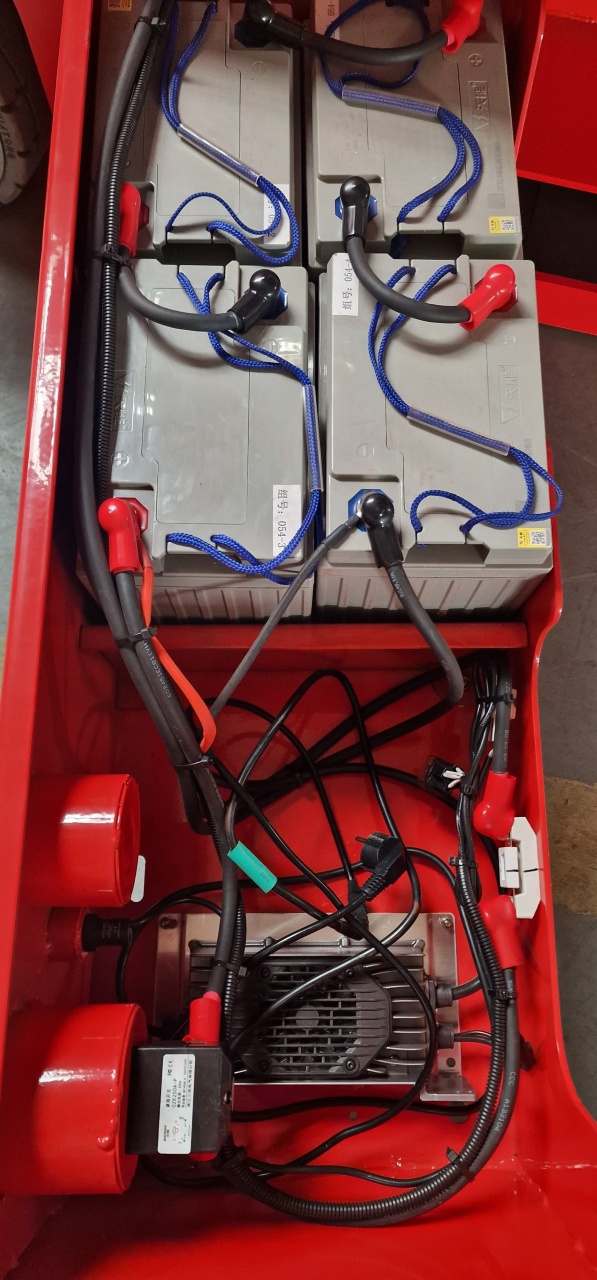

✔️ Power supply: 24V (4×6V batteries), total amperage=250Ah

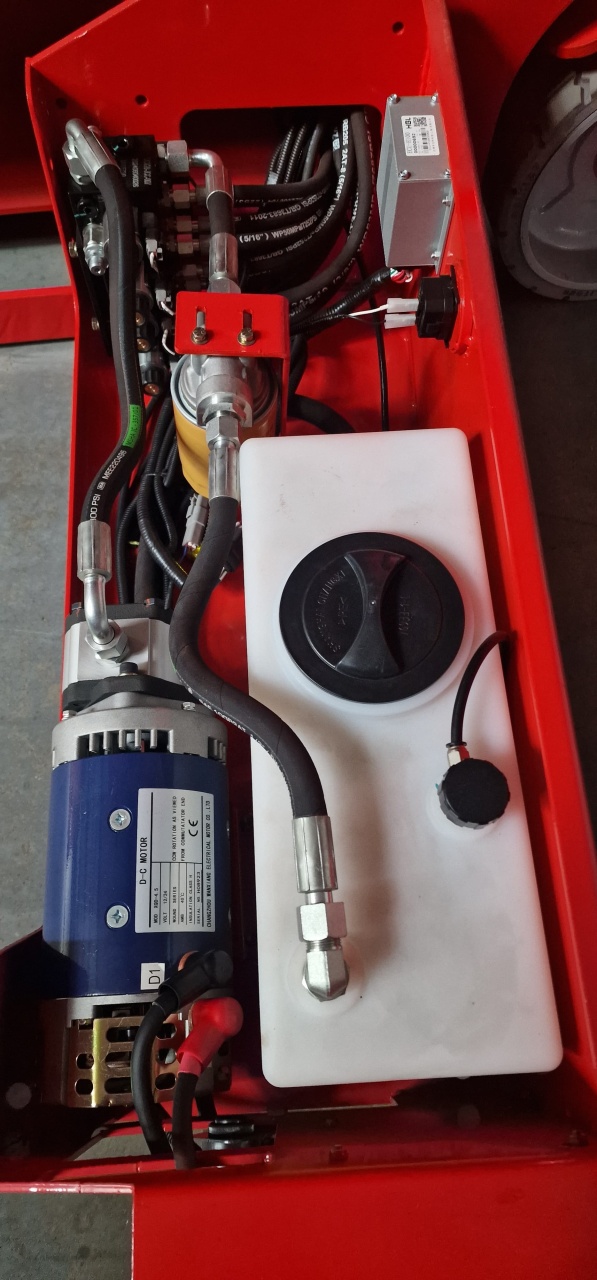

✔️ Motor power: 4.5 kW
✔️ Raising/lowering time: Approximately 35 seconds
✔️ Traction system: Electric, automatically operated
✔️ Travel speed: 3.5 km/h
✔️ Turning radius: 2.2 m (ideal for maneuverability in tight spaces)

Safety features:

✔️ Emergency stop system (on platform and on the ground)
✔️ Overload protection
✔️ Safety bar on the edge of the platform
✔️ Tilt sensor with warning
✔️ Automatic wheel brakes for stability during lifting
✔️ Manual emergency lowering device

Design and construction:

✔️ Robust, corrosion-resistant galvanized steel frame
✔️ Anti-slip platform for increased safety
✔️ Non-marking wheels – ideal for delicate floors
✔️ Compact design, suitable for access through standard doors

Operation and control:

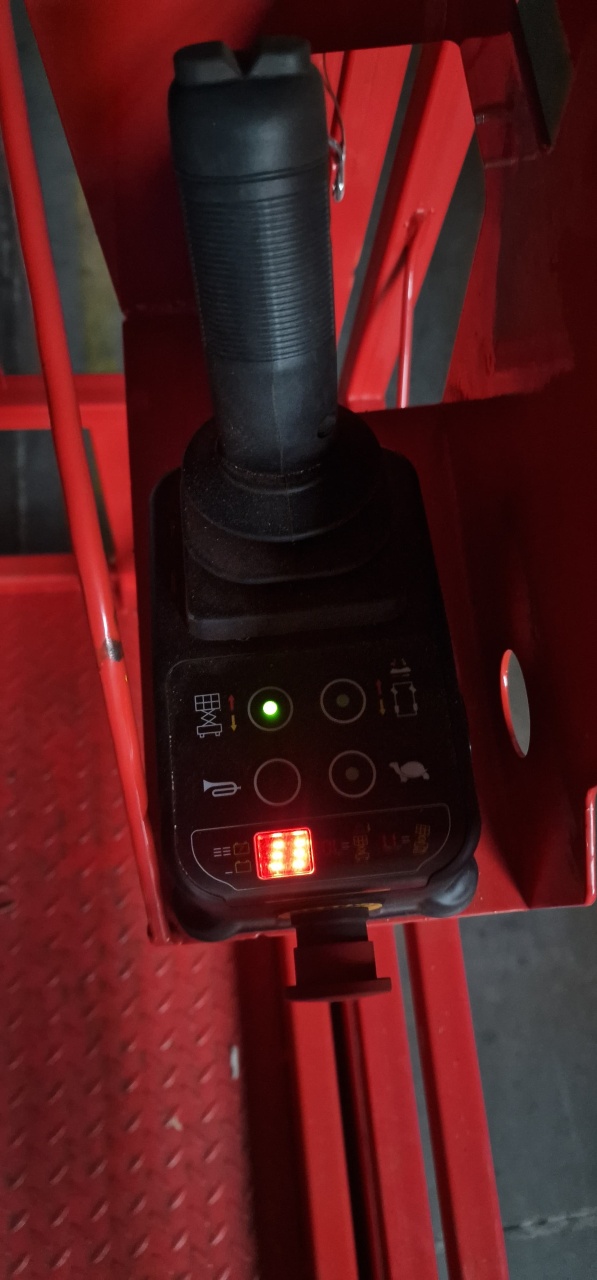

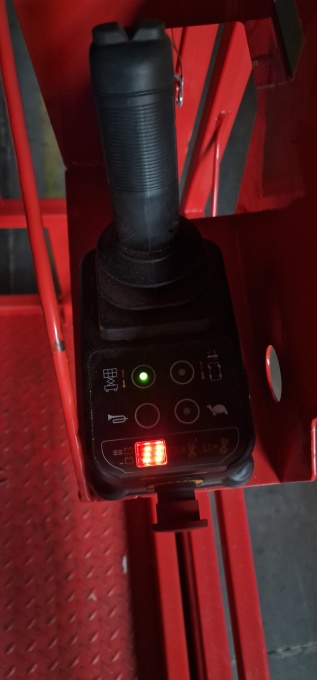

✔️ Intuitive, easy-to-use control panel
✔️ Battery status indicator

Recommended apps:

✔️ Maintenance and repair works
✔️ Installation of equipment at height
✔️ Warehouses and logistics
✔️ Construction and renovations
✔️ Events and scenographic installations

Dimensions and weight:

✔️Total length (frame, with ladder included): 2.4 m
✔️Total width: 1.15 m
✔️Total weight: 2,250 kg
