Satfinder with live image - SATLINK SP-2100 FHD DVB-S2 Digital - Satellite dish antenna tuner with included tuner

Description

It is a device highly sought after by professionals.

Description:

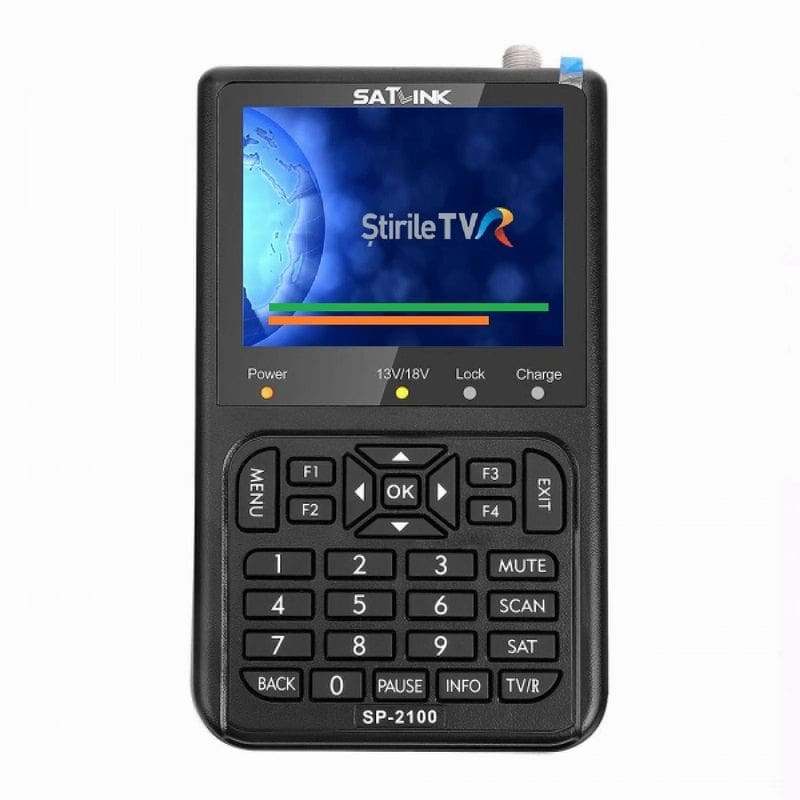

SP-2100 is a dvb-s / s2 and mpeg-2 / h.264 compatible handheld satellite meter. thanks to the compact size, small weight, user interface, long working hours battery life and a rich set of functions, the meter provides all functions as required for the installation and inspection services, digital satellite tv homes or multifamily units.
Features:
•  3.5 Inch High Definition TFT LCD Screen
•  Fully DVB-S/DVB-S2
•  Support formal international standard video and audio encoding
•  Digital meter for signal strength and quality
•  Supports scan of Auto,Blind,Manual or NIT
•  Sound and Light Alarm for Locking Signal
•  Auto Calculate Angle of AZ ,EL
•  Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
•  Speaker Integrated

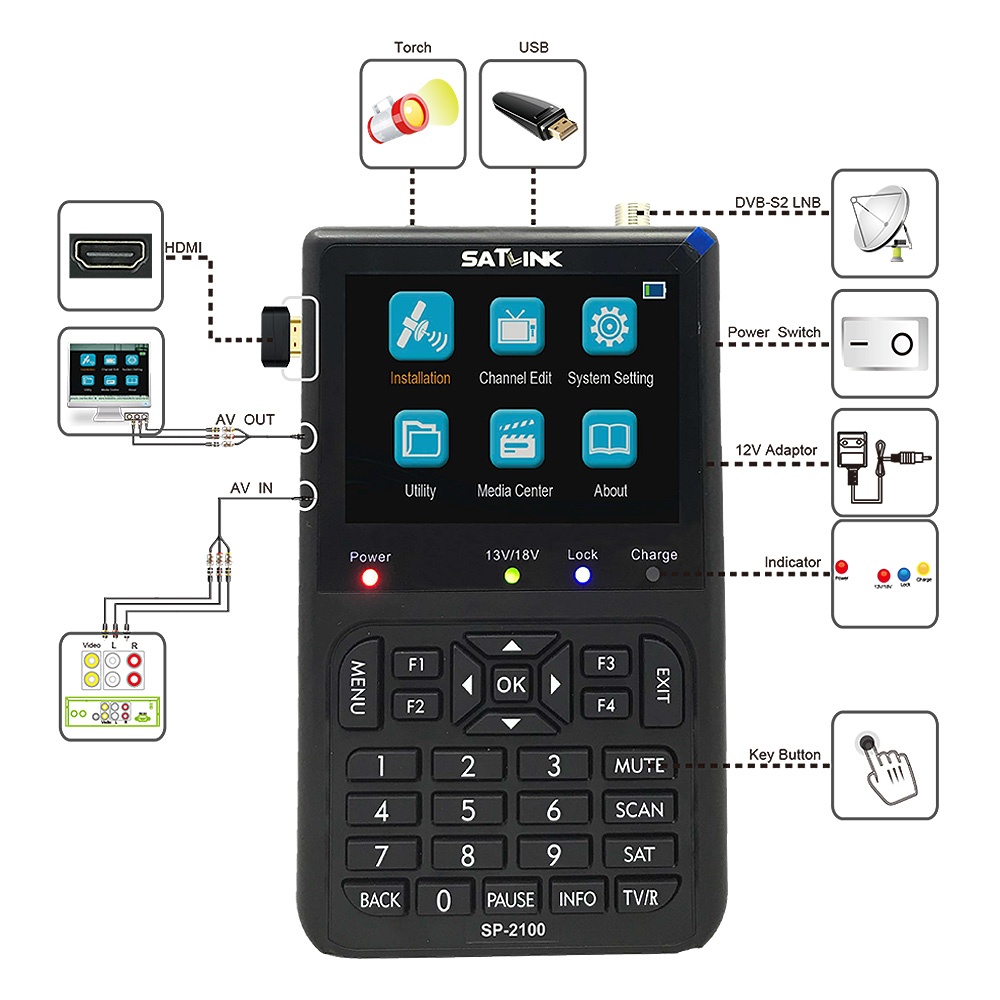

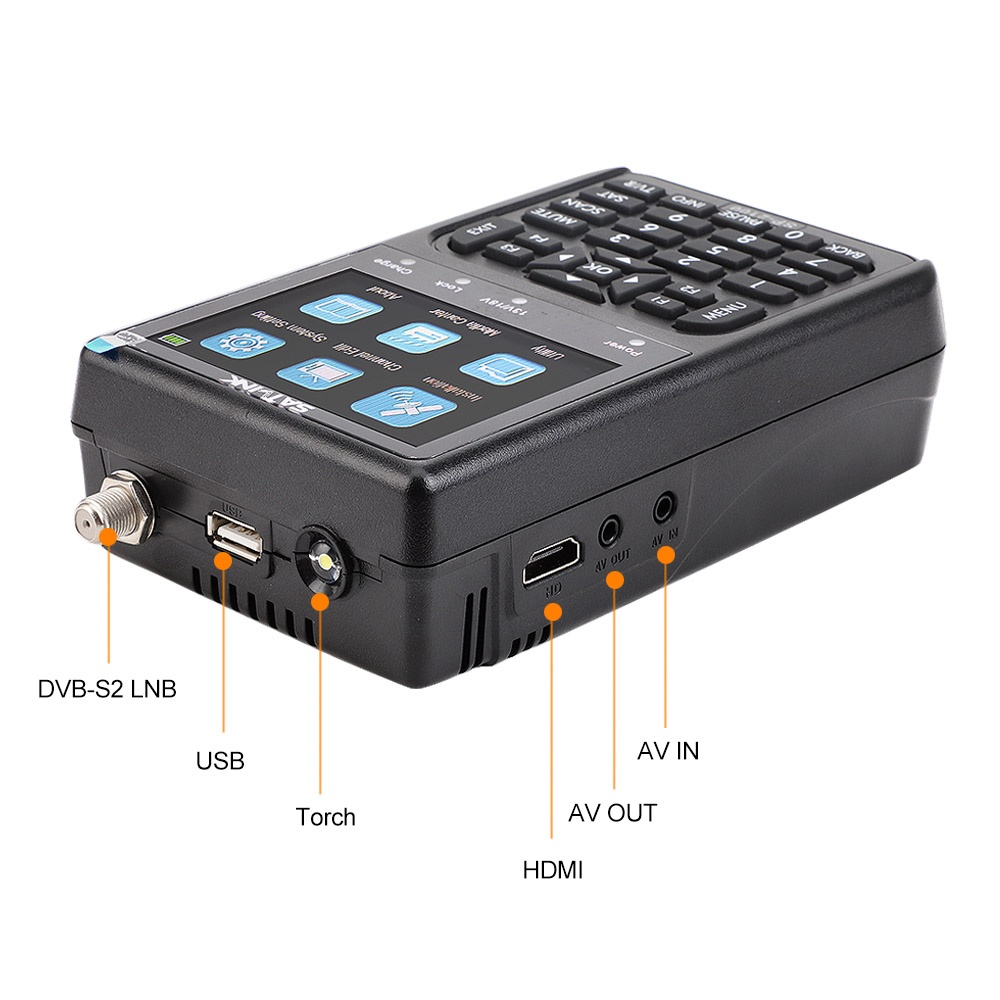

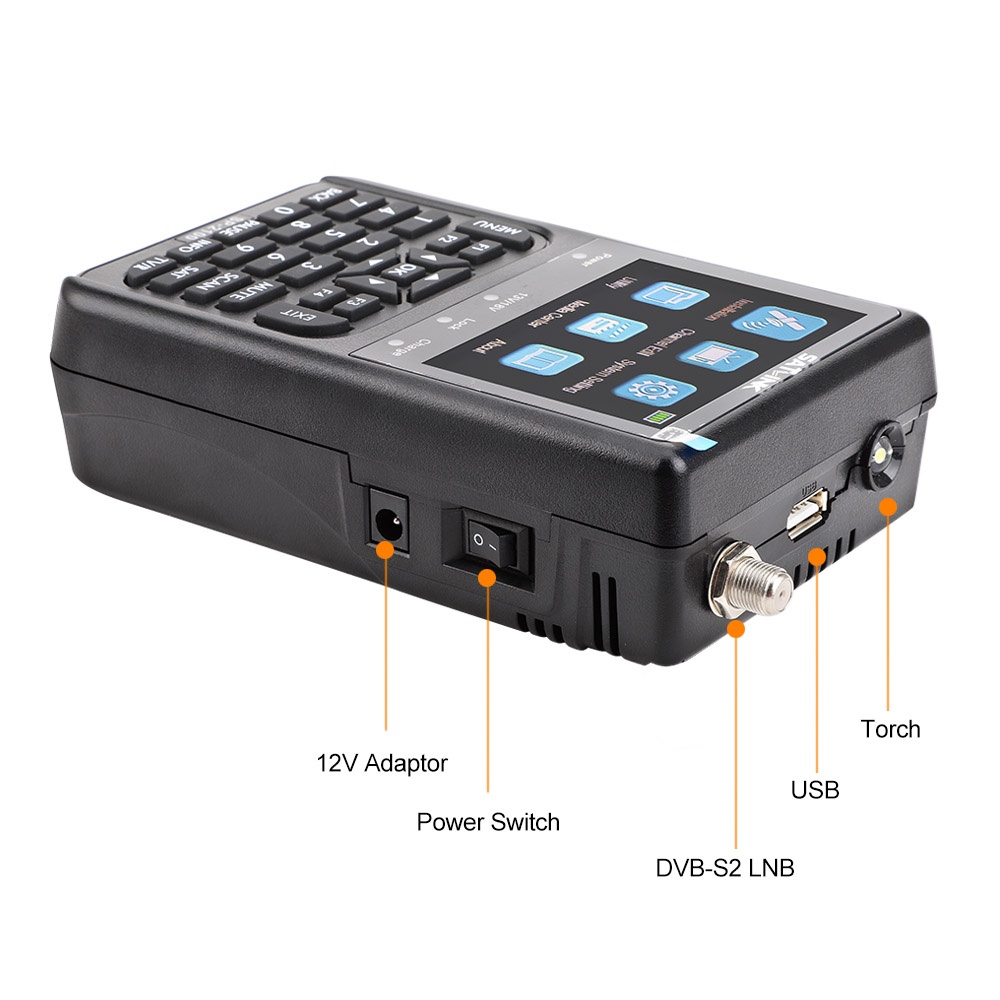

•  Support both AV out and AV in
•  LNB short protect
•  7.4V/2600mAh Li-Ion Battery Included
•  Software upgrade via USB port
•  Easy to carry

Specifications:

dvb-s / s2, mpeg-2, mpeg-4, h.264
satellite entrance / demodulation
connector type: f male
the frequency from 950 to 2150 mhz
the level of the input signal, from 65 to – 25 Islamic
the switch 22 khz ranges:
the power source of lnb: 13 / 18, 350mA imax
the type of demodulation: QPAK, 8PSK, 32 APSK
the frequency of the symbol: 2 < rs < 45 Mband (SCPC / MCPC)
display:
lcd display: tft Transmissive
solution: 320X240 (rgb)
the active area of ​​the display, 70.0×52.5 mm
av output style="padding: 0px; margin: 0px 1px 0px 0px !important;">connector type: 3.5 mm plug
video output: CVBS
audio output: stereo l / r
av input.
connector type: 3.5 mm plug
video output: CVBS
audio output: stereo l / r
the service data transmission.
interface: usb type a
the protocol of data transmission, usb 2.0
Management file system ntfs, fat32, fat16.
file format: wma, mp3, mp4, avi, jpg, jpeg, jpg firewalls, img
the micro processor.
microprocessor: GX6605
the 600 mhz clock rate.
synchronous dynamic memory: DDR2512Mbit
lithium ion battery: 7.4 / 3000 much
adapter: exit: 12 v dc / 1.5A
entrance: 100 240A av, 50 / 60Hz
wattage: a maximum of 10 w
size: 101 (w) x77 (d) x47 mm (in)
net weight: 0.5 kg

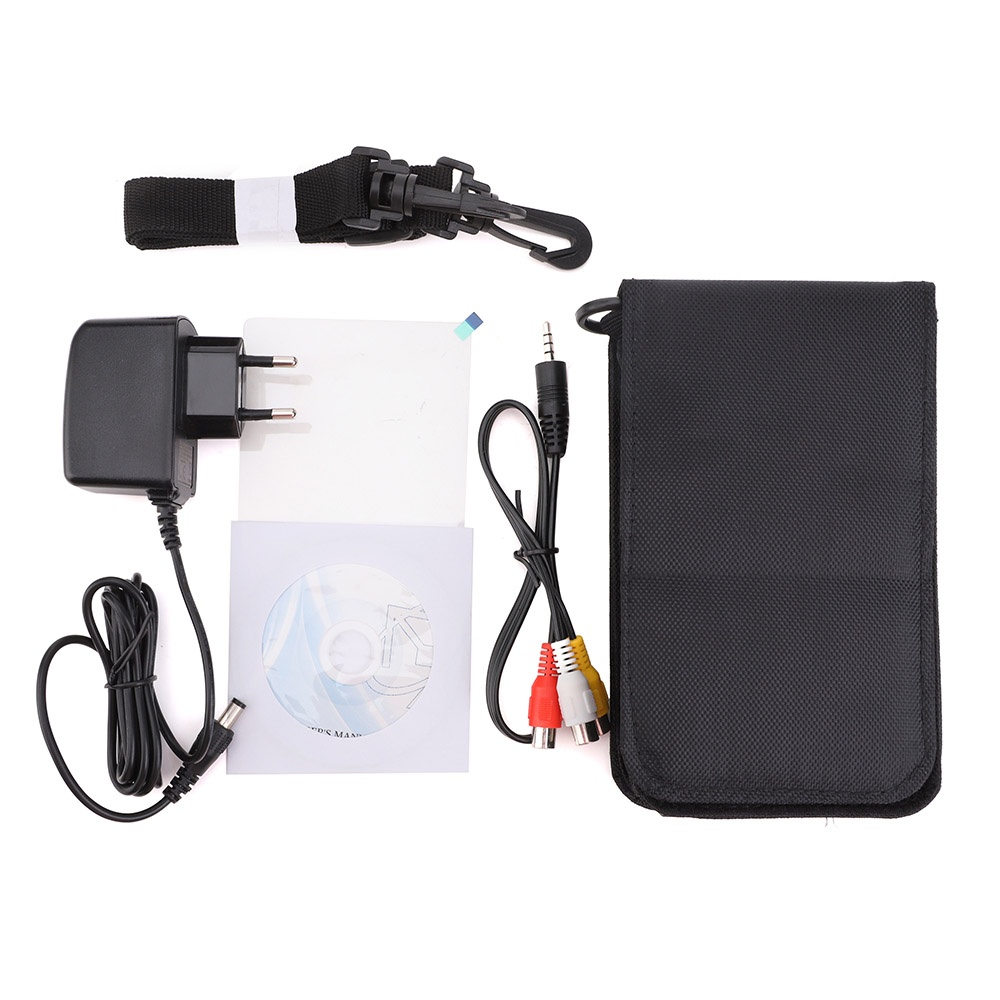

Package includes:
1 x SP-2100 Meter
1 x AV Cable
1 x Power Adapter

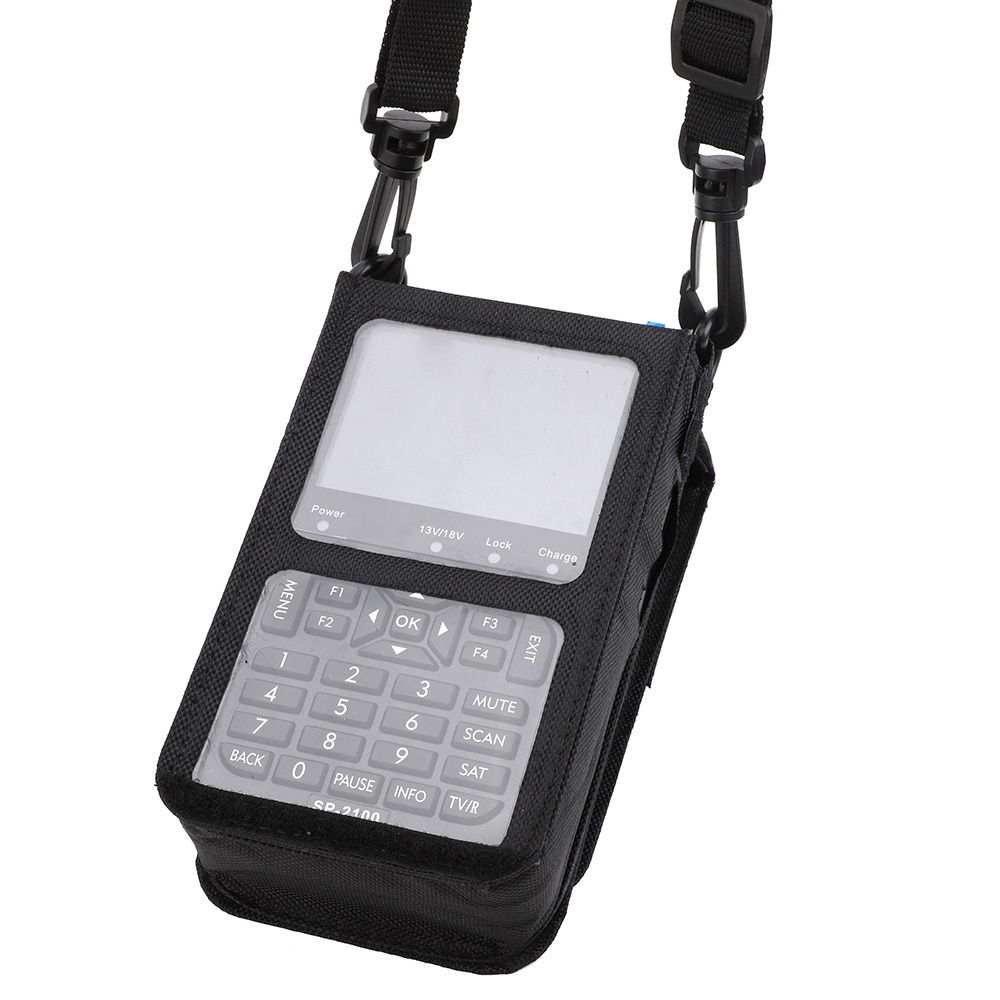

1 x Silicone Case
1 x User Manual (CD)
