Description

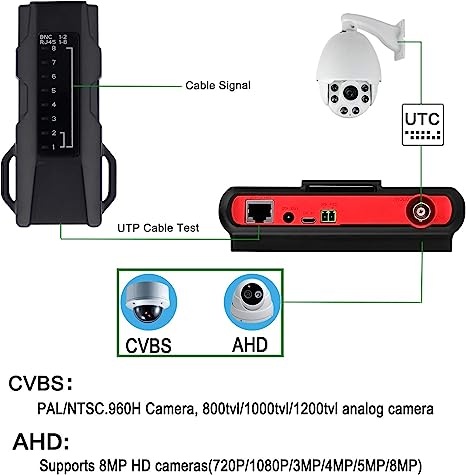

The CCTV tester for hybrid cameras is capable of testing and troubleshooting coaxial 720P / 960P /1 080P / 3MP / 8MP / 4MP AHD analog camera (does not support IP cameras), with video display. High-resolution LCD video monitor can display a clear image when troubleshooting a security camera system, correct remote installation.

• 【PTZ CONTROL】 Support RS485 and coaxial control, compatible with multiple PTZ protocols (PELCO-D / PELCO-P); Baud rate: 2400, 4800, 9600, 19200 (optional), can zoom in/out the lens, adjust focus, aperture/set, PTZ continuous rotation test.

• 【UTC CONTROL】UTC Control/Call OSD menu, press and hold the M menu button for 5 seconds to enter. UTC is displayed at the top of the screen. Press the menu button to display the camera menu and operate the UTC menu with the up/down/left/right input keys. Press the menu button M for 5 seconds to exit UTC mode.

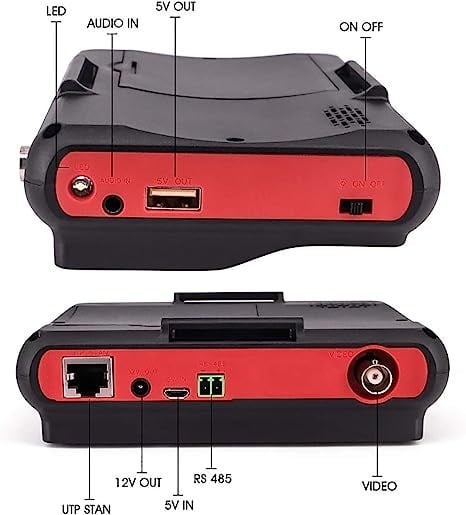

• 【APPLICATION】 UPT/LAN cable, measure the connection status, display the connection sequence and NO. Audio and multi-language OSD test, brightness, contrast and color saturation can be adjusted, USB 2.0 interface provides 5V/1A emergency power output, DC 12V/1A output power from the tester.

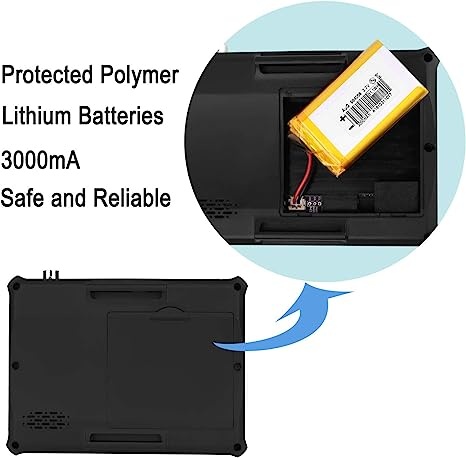

• 【LONG WORKING TIME】Built-in 3.7V 3000mAh lithium polymer rechargeable battery, LED emergency lighting. After charging 2-3 hours, it can work up to 6 hours.
