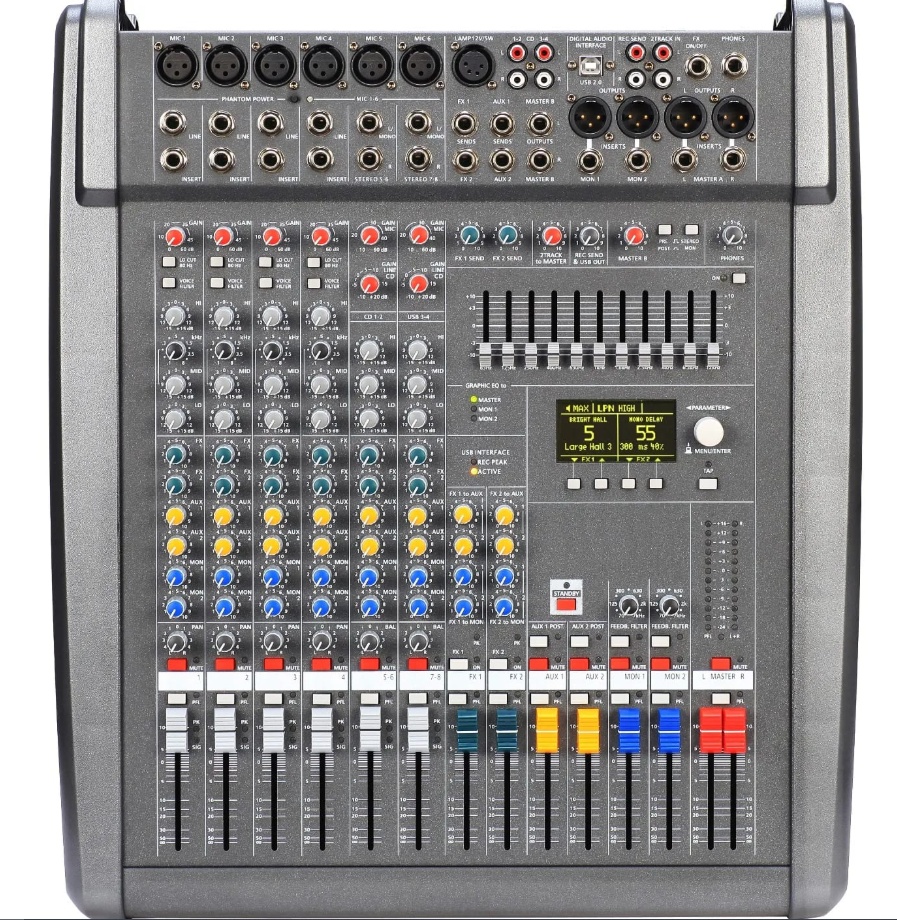

Professional audio mixer with amplification, PowerMate PM600‑3, 2×600 W power, 10 channels, 14 effects, 11-band equalizer, 48 V phantom power

Description

This amplified audio mixer PM600-3 is the ideal solution for audio professionals looking for performance and reliability. With an impressive power of 2x600W, it offers exceptional sound clarity, suitable for live events, concerts, conferences or other large-scale sound applications.

The model is equipped with 10 channels, offering multiple connectivity options and flexibility in mixing, and the high-quality preamplifiers ensure a clean and powerful sound, regardless of the environment in which it is used. It features integrated effects, intuitive control, and an easy-to-use interface tailored to the needs of professionals.   PowerMate 600-3 comes equipped with microphone preamps, programmable voice processor from Lexicon, USB interface, AUX outputs, faders specially developed for the PowerMate series, dust-resistant, digital amplifier, anti-feedback filters and effects, all assembled in Germany.

It also has vocal filters, phantom power at +48V, 6 auxiliary channels, USB interface and much more.

PowerMate 600-3 Specifications:

> 10 channels

- 6 Mic/Line XLR inputs with 11-band semi-parametric equalizer
- 4 combined Mic-/Stereo line inputs with 11-band equalizer
- 2 x stereo effects processor on 24-bit with fixed presets and editable/storable user presets
- 2 x 600 W/4 Ohm RMS
- 2 x 300 W/8 Ohm
- 2 x 150 W/2.7 Ohm
- RMS power: 2 x 600W @ 4ohms; 2 x 300W @ 8ohms - 2 x 150W

> EQ on channels

- low ±15dB/60Hz;
- mono mids ±15dB/100Hz-8kHz;
- stereo mids ±12dB/2.4kHz;
- îhigh ±15dB/12kHz;
- Master EQ on 11 bands ±10dB: 63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz;

> Filters

- switchable low-cut filter at 80 Hz
- switchable voicing filter for each XLR input
- feedback filter for MON 1-2
- new 11-band equalizer routed to master channels

> Integrated protections

- mixer output supervised by relays: MON1, MON2, MASTER A
- amplifier protections: audio limiters, high temperature, DC, HF high frequencies, short circuit, peak current limiters, power-on delay
- cooling: fans with controlled rotation
- Phantom power: 48V, switchable in groups

> Effects

Dual 24/48-bit multi-effects processor
Presets: 100 factory + 20 user
Remote control: footswitch, MIDI 1 in/1 out

• Number of channels: 10

• Built-in current stabilizer

• Limiter for any type of speaker

• Digital display, you can write the band name on the screen

• Integrated protections

• Cooling-fans with controlled rotation

• Made in Germany

• Dimensions LxWxH: 60 X 50.2 X 25.7

• Weight 13 kg
