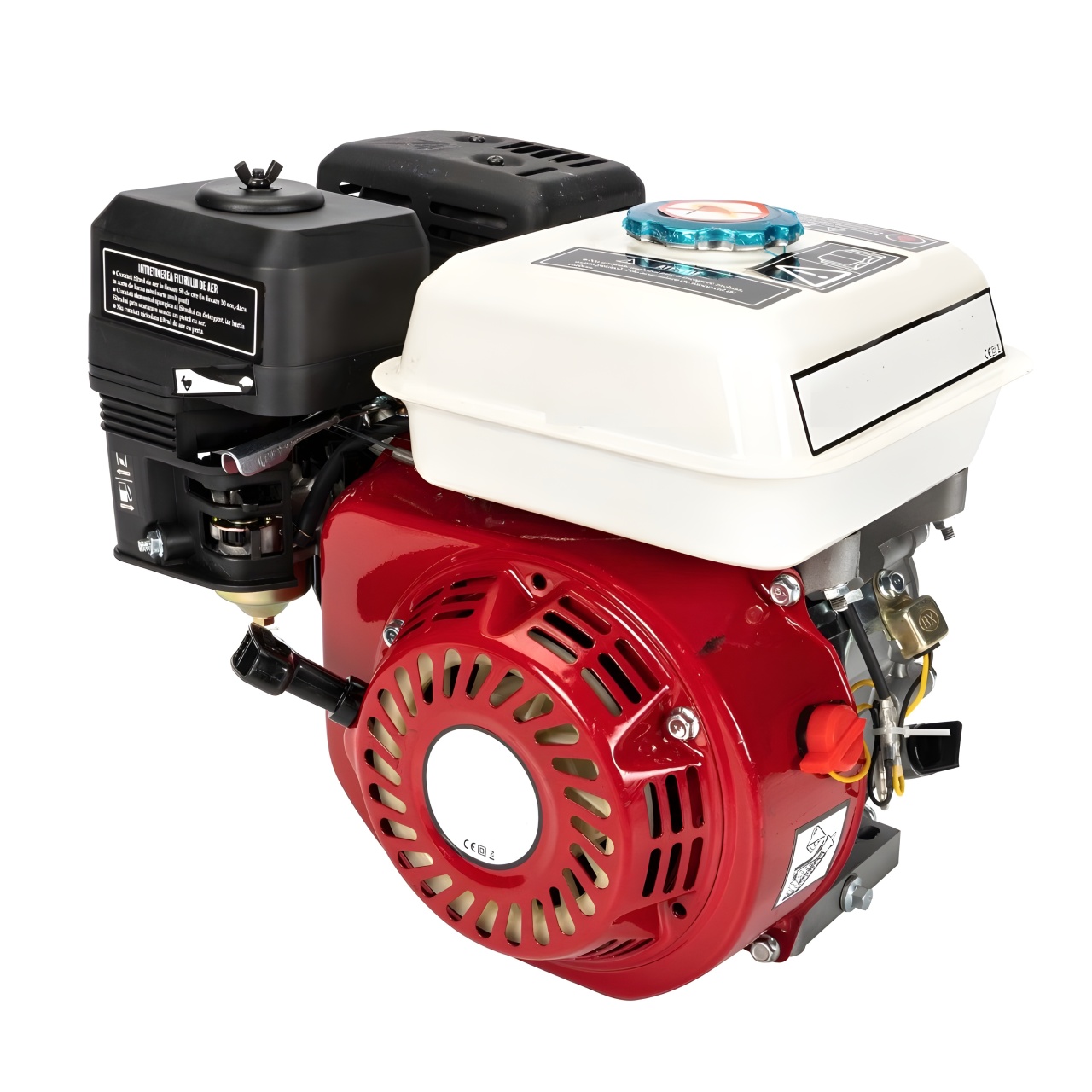

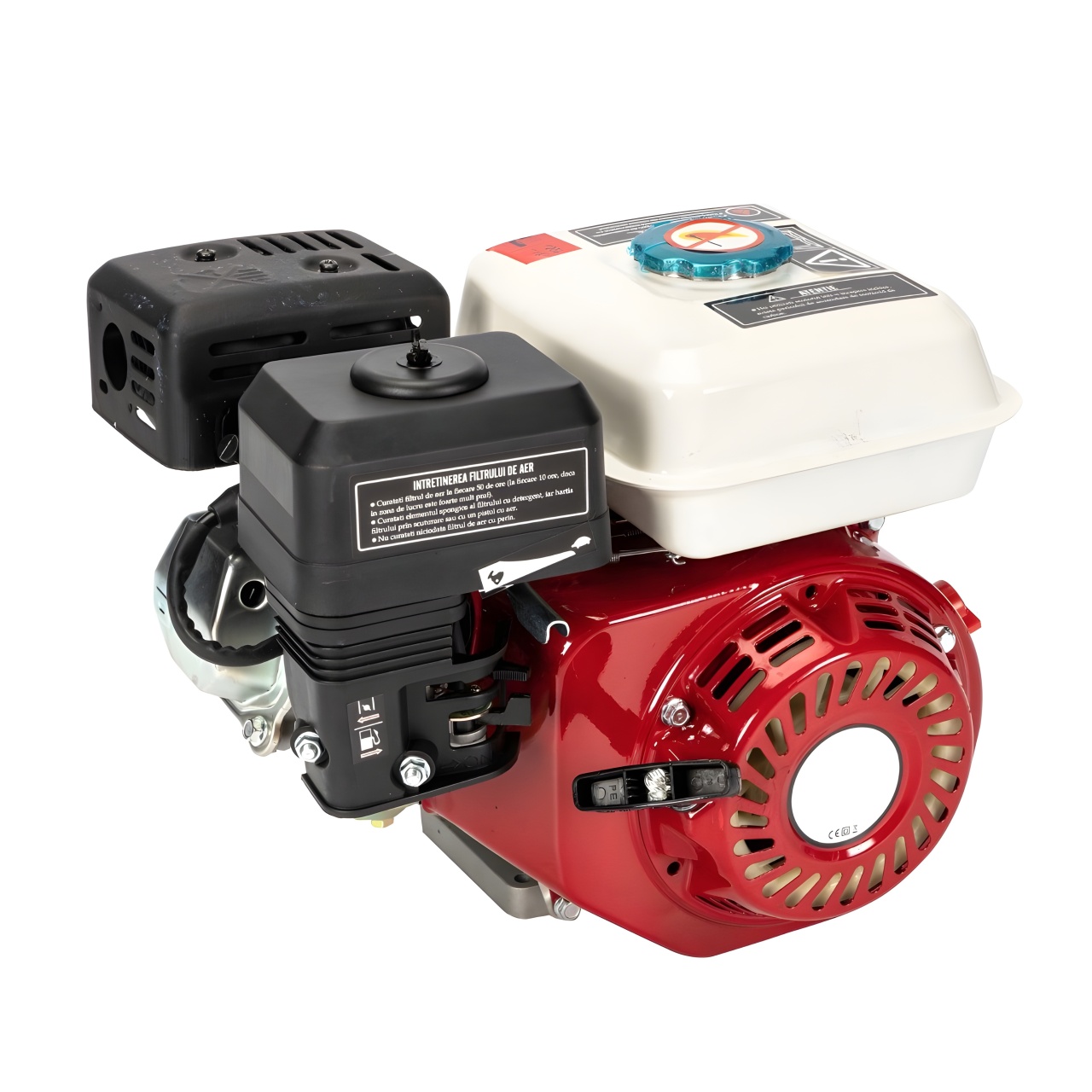

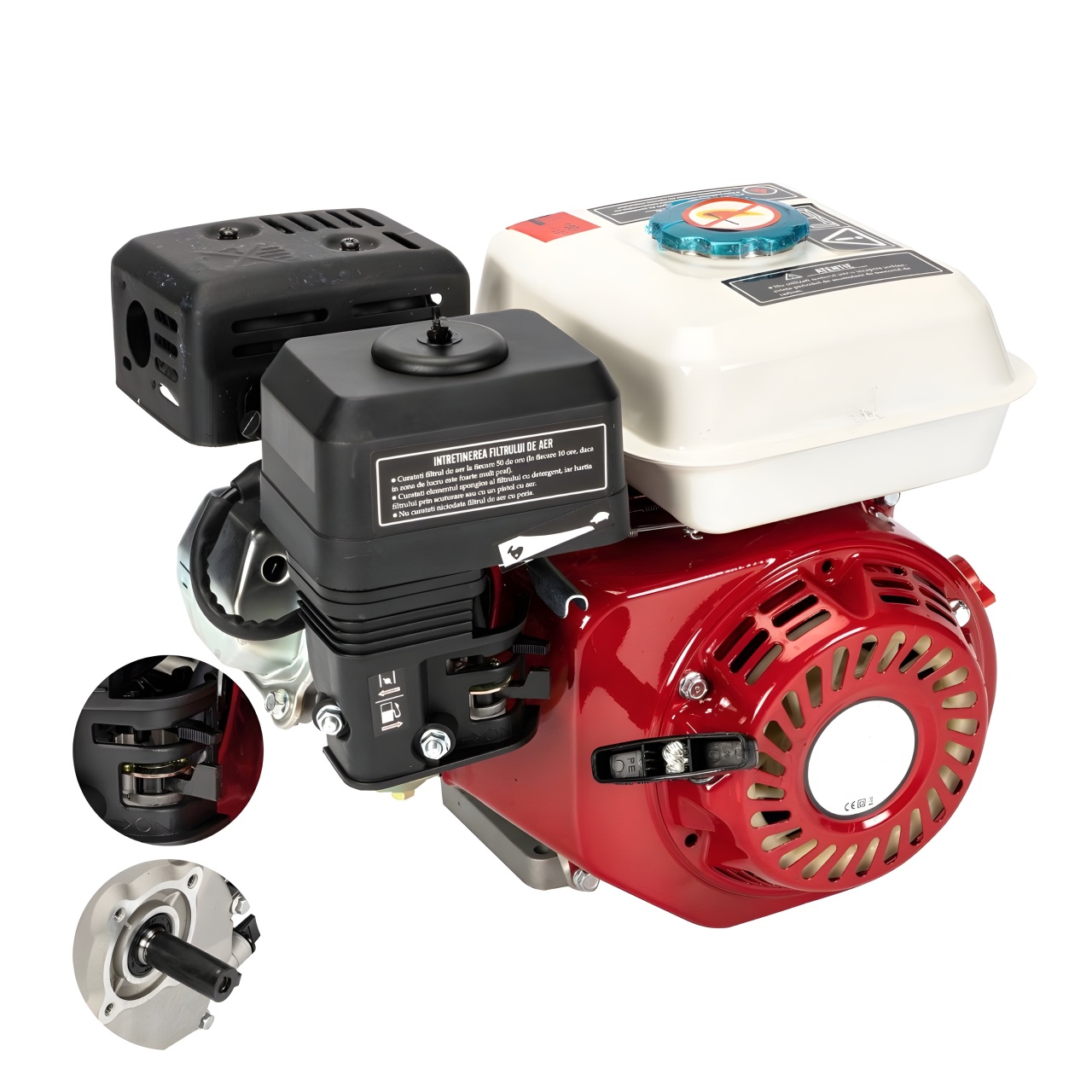

Inovoo General Purpose Gasoline Engine (170F), 7 HP, 212Cc, 25 mm Shaft, 4 Stroke

Description

The general-purpose gasoline engine, with a cylinder capacity of 212 cc and a power of 7 HP, is designed to provide exceptional performance in various applications, such as tillers, lawn mowers, generators, water pumps and construction machinery. This 4-stroke engine, equipped with OHV technology, guarantees efficiency and durability.

Technical Features:

• -Maximum Power: 7 HP at 3600 rpm, ensuring robust torque and consistent performance.
• -Displacement: 212 cm³, which contributes to the engine's power and ability to handle heavier loads.
• -Engine Type: 4-stroke gasoline engine, with horizontal shaft, which allows for an optimized torque distribution.

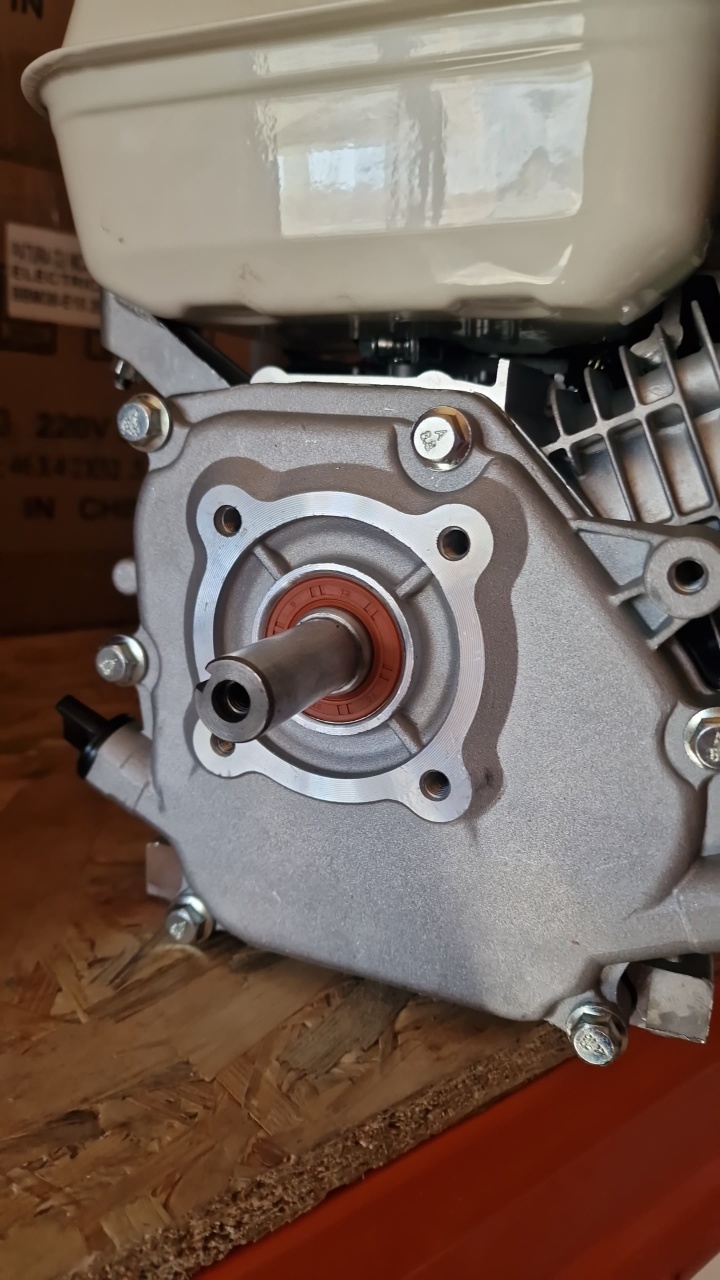

• -Pinch Shaft: Wedge shaft shape, with a diameter of 25 mm, the shaft length is 50 mm.
• -Oil Bath: A capacity of 0.6 L, using 15w40 oil, which ensures adequate lubrication.
• -Pinch Mechanism Rotation: The shaft rotates counterclockwise, allowing easy integration into various equipment.
• -Standard Product: The tank has a capacity of 3.6 liters, and the maximum consumption is 1 l/h at 3600 rpm.
• -Dimensions: Length of 312 mm, width of 362 mm and height of 346 mm, with a volume of 360 liters/minute.

Advantages:

• -Modern Design: Made of quality materials, this engine is not only suitable for various uses, but is also easy to maintain.
• -Easy Start: Thanks to its design, the engine starts quickly, facilitating immediate use.
• -Safety: It is protected against oil-free operation, which contributes to reliability and durability.

Important Instructions:

• The engine will be delivered without oil and fuel for transport reasons. Make sure to fill the engine with oil before first use, using 15w40 4-stroke engine oil.
• Check the oil level before each use, and when checking, the engine must be on level ground.

This engine is the ideal solution for those looking for a powerful and versatile piece of equipment, capable of handling a wide range of tasks.
