Caravan ceiling fan 12V, for bidirectional cooling/ventilation without remote control and rain cover

Description

6-speed fan
High-quality plastic housing, resistant to UV radiation and especially to physical shocks (branches, storms, etc.)
The transparent, smoky hatch cover allows light to enter, but blocks heat and solar radiation
Motor made of pure copper core, reliable; extremely efficient
Fan with 10 blades, for a more efficient operation stable and quieter
Equipped with fixed, stainless steel, anti-rust insect protection net
In-out air function with specific buttons, air intake and exhaust from inside the caravan/caravan/camper
With manual opening
It works at 12 v and has 2 speeds on intake and 3 on exhaust.

Power of 8 w, which means a very low electricity consumption of only 0.66 a/h
Dimensions: 42x42x18 cm (lxwxh)
Mounting/cutting dimensions: 28x28 cm (max 30x30 cm)
It can also be mounted on a 30x30 cm gap, with a little adaptation or by keeping the inner frame of the old hatch/which must be changed
Installation thickness: 3.8-6.5 cm (the inner frame comes with a cover for any ceiling thickness (3.8-6.5 cm) that can be adapted by cutting)
Intake/exhaust air volume of 20-30 cbm/min
1000 revolutions per minute
Can be used while driving, recommended at distances up to 80-90 km/h
Very quiet, does not make noise

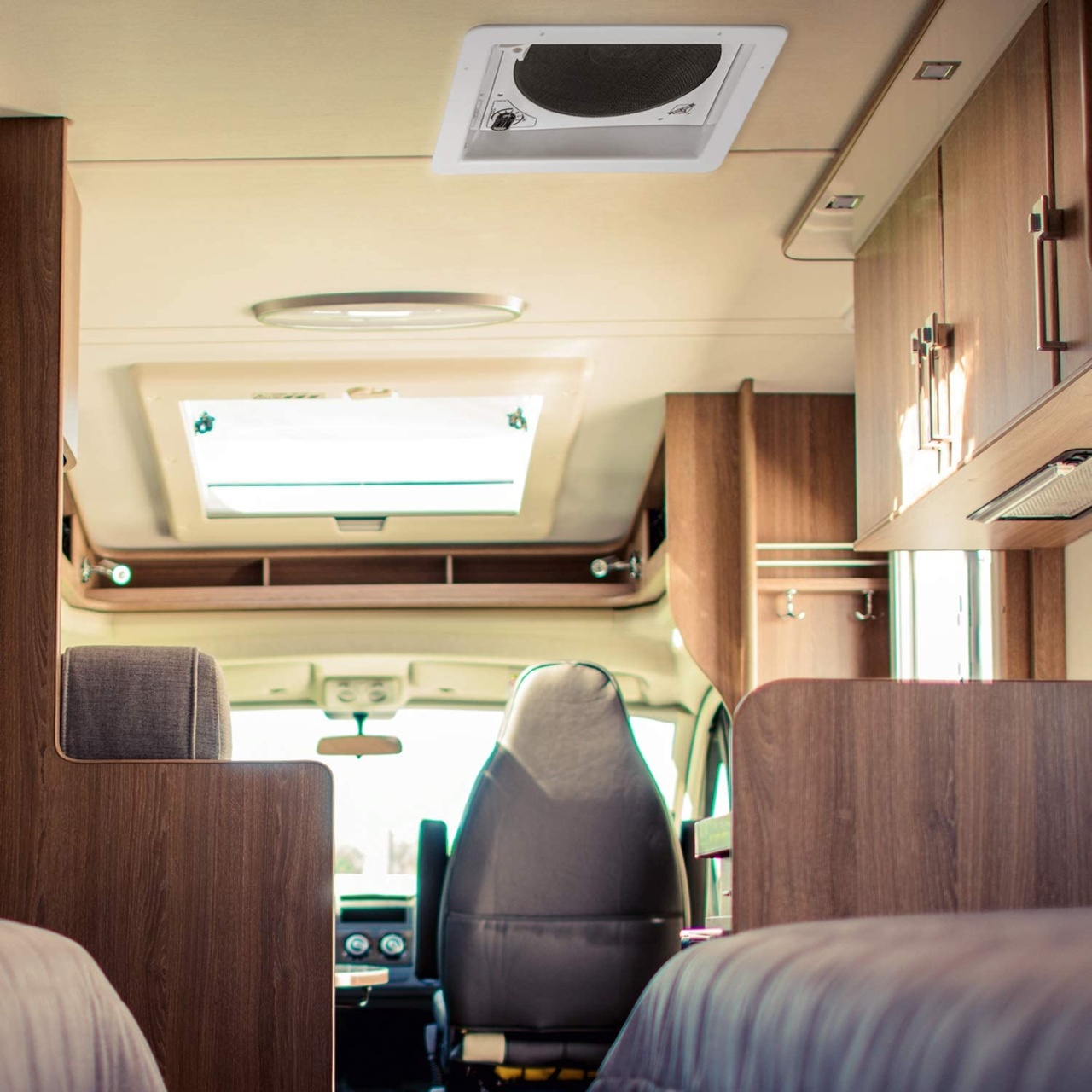

In the case of converting a camper/caravan/motorhome, installing two hatches, one in the front and the other in the back (one of them works on the intake and the other on the exhaust air) creates a continuous air recirculation, a fresh and quite cool air flow so that it is no longer necessary to use a portable/mobile air conditioner stationary.

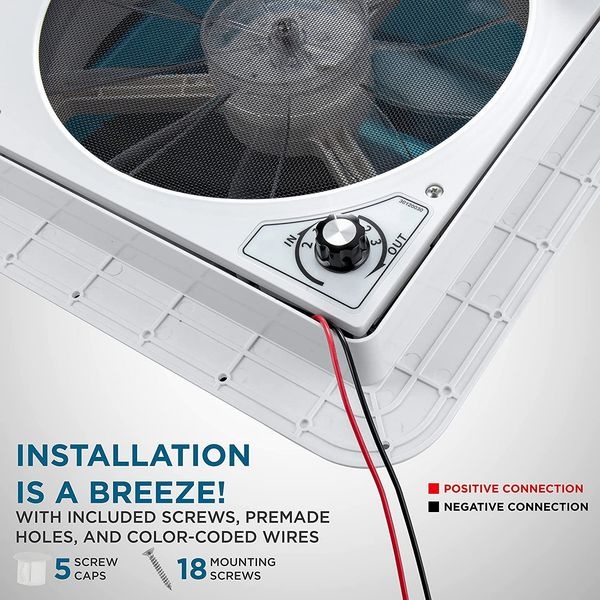

Installation to the electrical system:
A 1.5 mm2 or thicker cable is used
The red cable connects to the positive terminal of the battery
The black cable connects to the negative terminal of the battery
